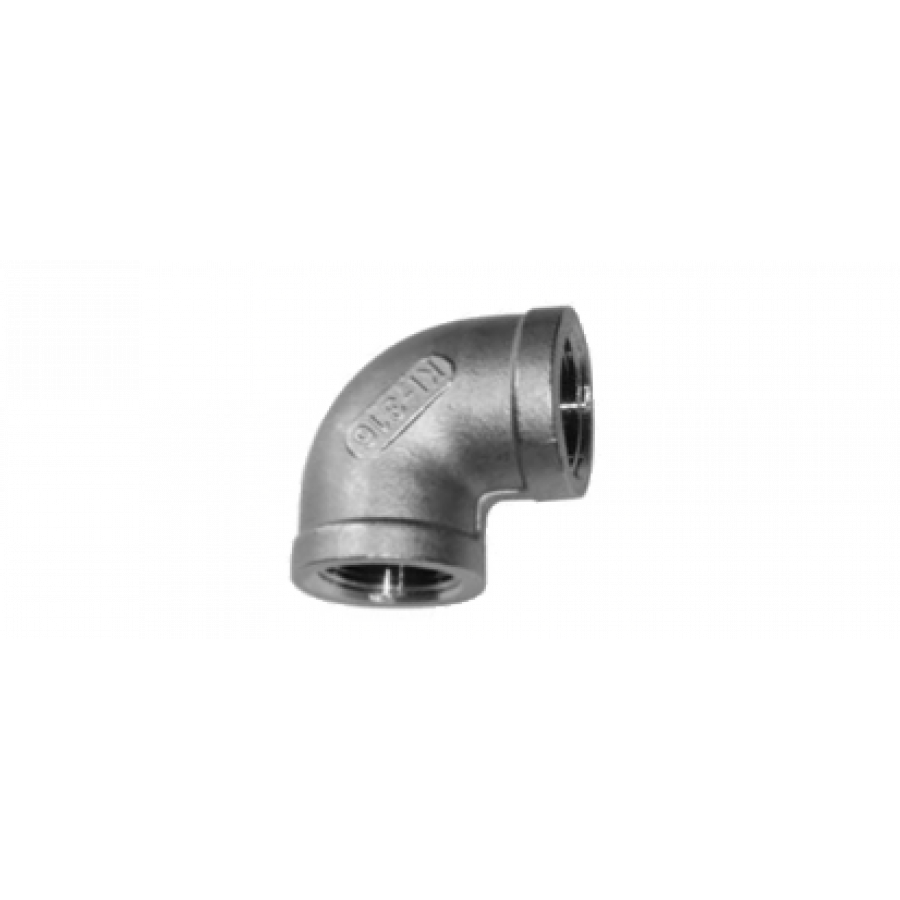

CODO 90º HH

CODO 90º HH

FIG. 090

Descripción:

Acero Inoxidable EN 1.4408/316
Rosca BSP conforme EN 10226-1 (ISO 7/1)
º50 PSI - PN10



FIG. 090

Croquis - CODO 90º HH


referencemidaL1pes
W3A009012 4'' 96 2.76
W3A009011 3'' 78 1.48
W3A009010 2 1/2'' 69 1.36
W3A009009 2'' 58 0.74
W3A009008 1 1/2'' 48 0.5
W3A009007 1 1/4'' 45 0.4
W3A009006 1'' 38 0.26
W3A009005 3/4'' 33 0.16
W3A009004 1/2'' 28 0.1
W3A009003 3/8'' 25 0.07
W3A009002 1/4'' 19 0.06
