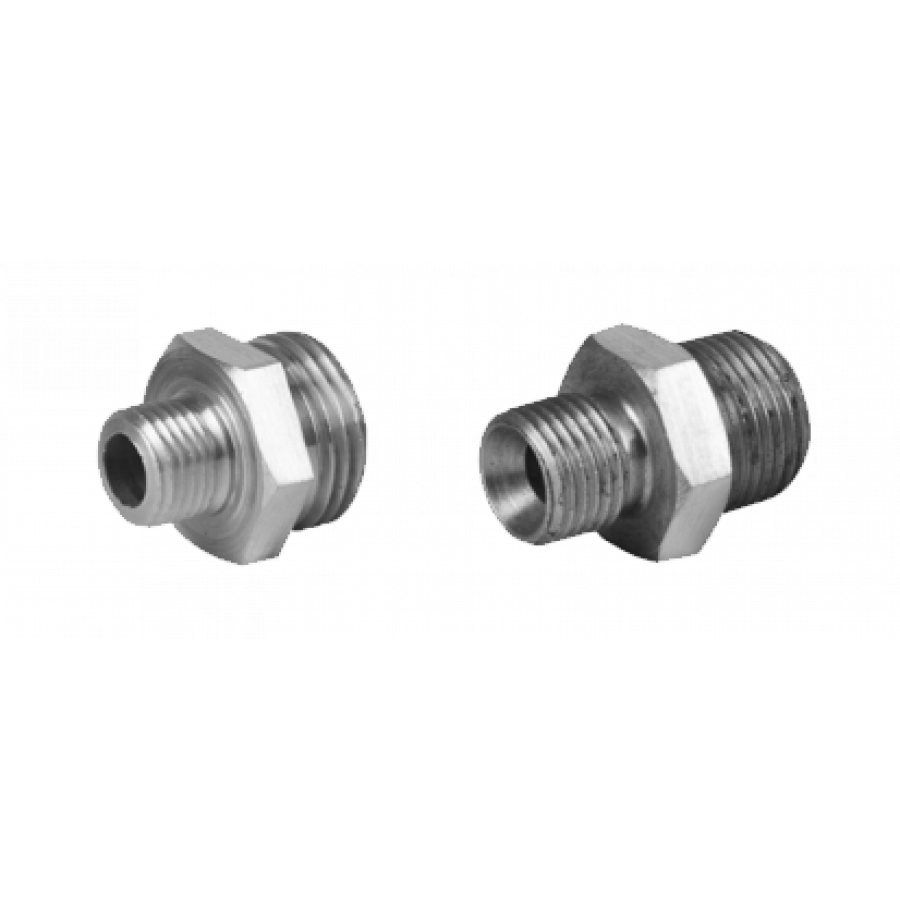

MACHÓN REDUCIDO M-M

MACHÓN REDUCIDO M-M

FIG. 245L

Descripción:

Acero Inoxidable EN 1.4408/316L
Rosca BSP conforme EN 10226-1 (ISO 7/1)
150 PSI - PN10



FIG. 245L

Croquis - MACHÓN REDUCIDO M-M


referencemidalSWpes
W3L02450203 1/4'' x 3/8'' 29.0 20 0.037
W3L02450402 1/2'' x 1/4'' 24.0 22 0.022
W3L02450401 1/2'' x 1/8'' 23.0 22 0.022
W3L02450302 3/8'' x 1/4'' 22.0 18 0.018
W3L02450301 3/8'' x 1/8'' 20.5 18 0.018
W3L02450201 1/4'' x 1/8'' 20.0 14 0.014
