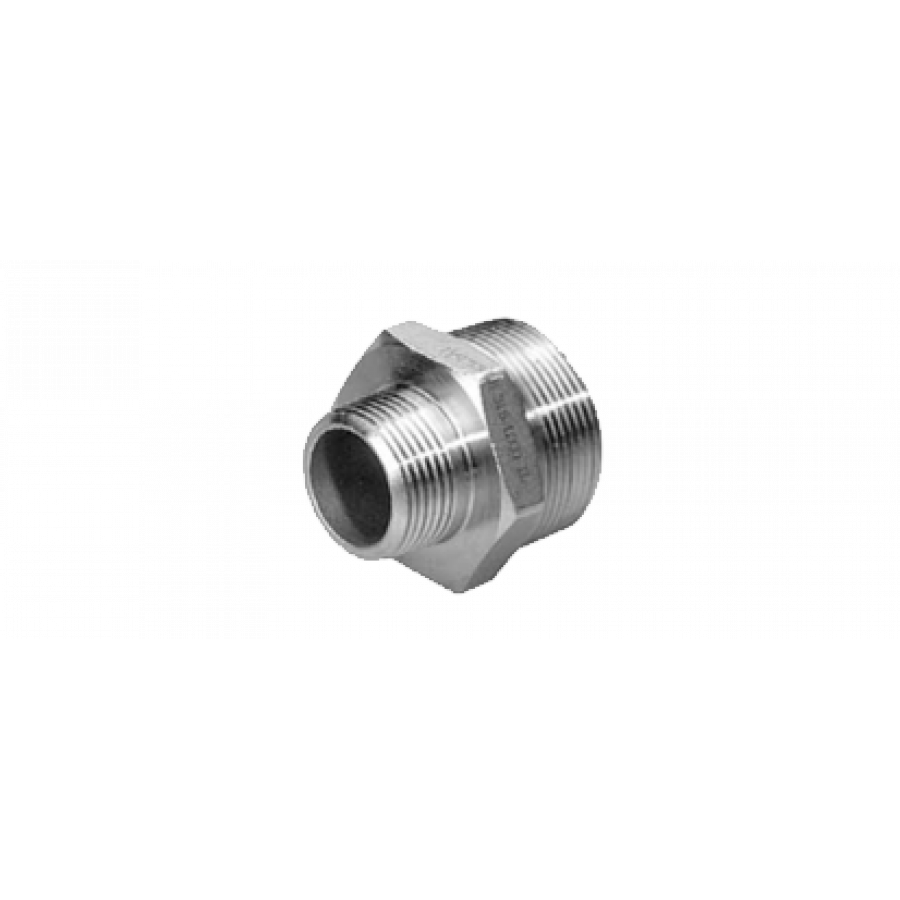

MACHÓN REDUCIDO

MACHÓN REDUCIDO

FIG. 245

Descripción:

Acero Inoxidable EN 1.4408/316L
Rosca BSP conforme EN 10226-1 (ISO 7/1)
150 PSI - PN10

FIG. 245

Croquis - MACHÓN REDUCIDO


referencemidalSWpes
W3A024561109 3'' x 2 1/2'' 81 93 1.36
W3A02450908 2 1/2'' x 2'' 74 80 0.93
W3A02451009 2'' x 1/12'' 64 65 0.43
W3A02450907 2'' x 1 /14'' 63 65 0.37
W3A02450906 2'' x 1'' 60 65 0.34
W3A02450807 1 1/2'' x 1 1/4'' 56 54 0.31
W3A02450806 1 1/2'' x 1'' 55 54 0.27
W3A02450805 1 1/2'' x 3/4'' 50 54 0.25
W3A02450706 1 1/4'' x 1'' 53 46 0.22
W3A02450705 1 1/4'' x 3/4'' 52 46 0.21
W3A02450704 1 1/4'' x 1/2'' 56 46 0.21
W3A02450605 1'' x 3/4'' 53 36 0.15
W3A02450604 1'' x 1/2'' 47 36 0.12
W3A02450603 1'' x 3/8'' 46 36 0.12
W3A02450504 3/4'' x 1/2'' 45 29 0.1
W3A02450503 3/4'' x 3/8'' 42 29 0.08
W3A02450403 1/2'' x 3/8'' 40 23 0.07
W3A02450402 1/2'' 1/4'' 40 23 0.05
W3A02450302 3/8'' x 1/4'' 35 19 0.05
W3A02450201 1/4'' x 1/8'' 31 17 0.03
