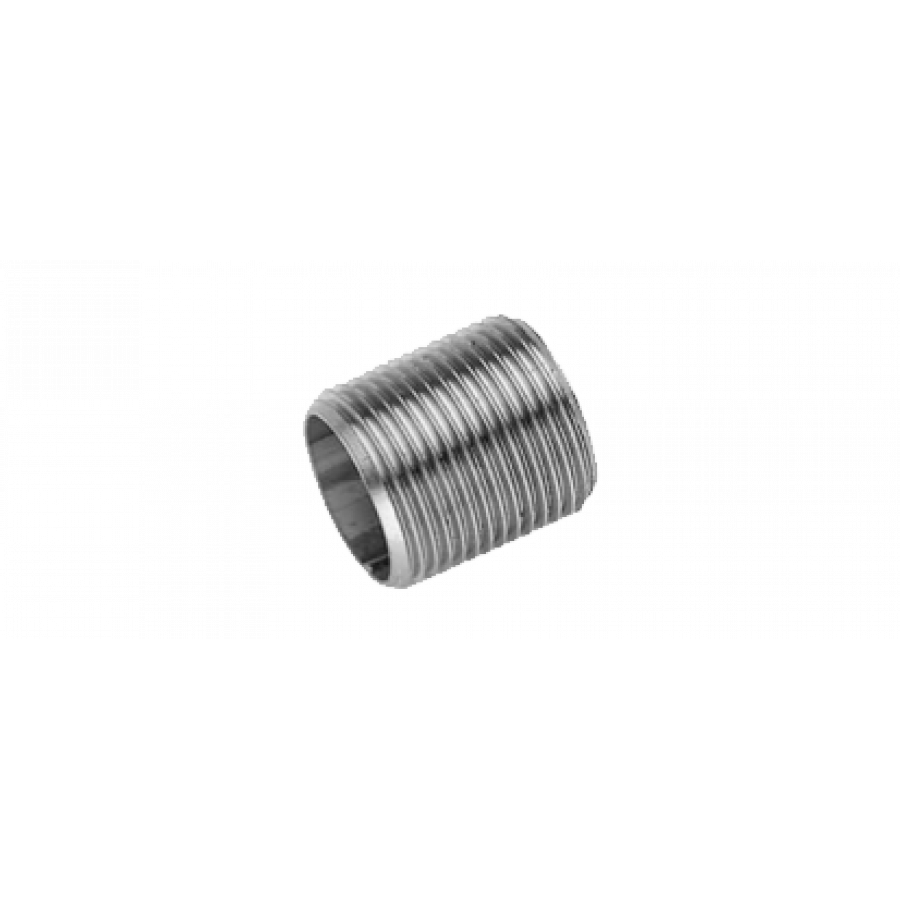

MANGUITO EXTERIOR

MANGUITO EXTERIOR

FIG. 531

Descripción:

Acero Inoxidable EN 1.4408/316L
Rosca BSP conforme EN 10226-1 (ISO 7/1)
150 PSI - PN10



FIG. 531

Croquis - MANGUITO EXTERIOR


referencemidalpes
W3A053102 1/4'' 18 0.006
W3A053103 3/8'' 30 0.016
W3A053104 1/2'' 30 0.021
W3A053105 3/4'' 35 0.039
W3A053106 1'' 39 0.065
W3A053107 1 1/4'' 45 0.107
W3A053108 1 1/2'' 38 0.08
W3A053109 2'' 55 0.206
