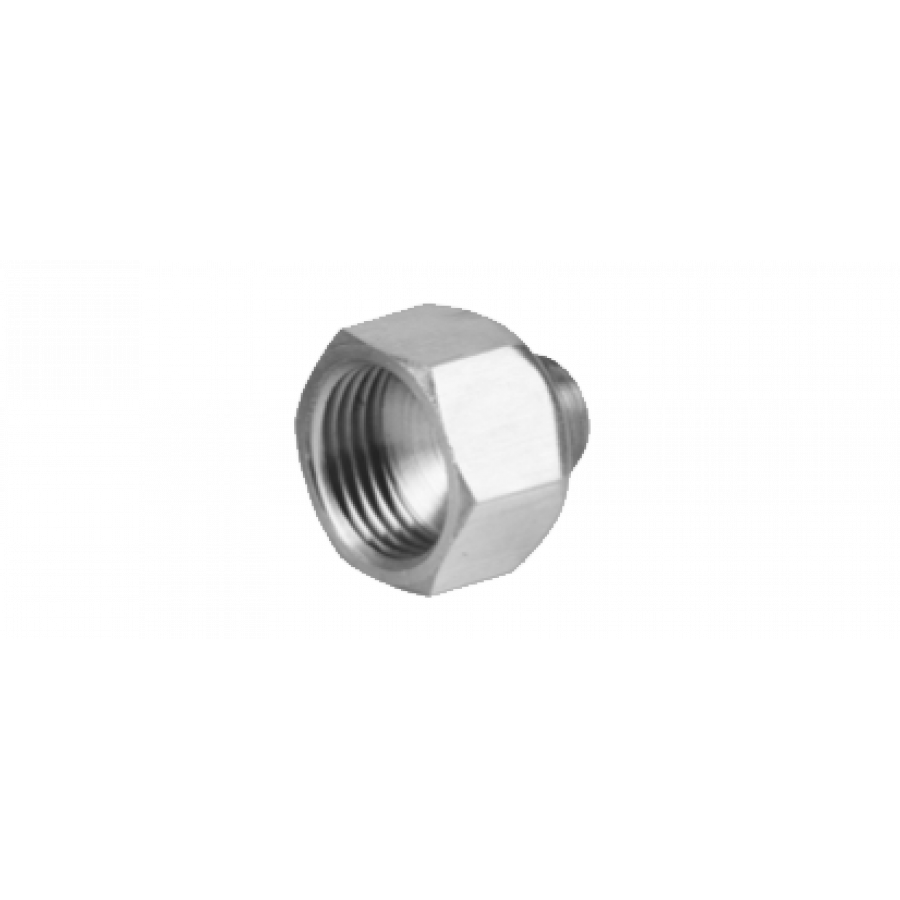

RACOR MARSELLA REDUCIDO M-H

RACOR MARSELLA REDUCIDO M-H

FIG. 246

Descripción:

Acero Inoxidable EN 1.4408/316L
Rosca BSP conforme EN 10226-1 (ISO 7/1)
150 PSI - PN10



FIG. 246

Croquis - RACOR MARSELLA REDUCIDO M-H


referencemidalSWpes
W3L02460302 3/8'' x 1/4'' 19.0 20 0.03
W3L02460104 1/4'' x 1/2'' 22.0 24 0.036
W3L02460103 1/4'' x 3/8'' 21.0 20 0.27
W3L02460204 1/8'' x 1/2'' 21.5 24 0.031
W3L02460203 1/8'' x 3/8'' 21.0 20 0.024
W3L02460201 1/8'' x 1/4'' 19.0 16 0.014
W3L02460102 1/4'' x 1/8'' 18.0 14 0.014
W3L02460202 1/4'' 19.0 16 0.015
