RACOR PASAMUROS

RACOR PASAMUROS

FIG. 062

Descripción:

Acero Inoxidable A.316
Rosca BSP ISO 228


FIG. 062

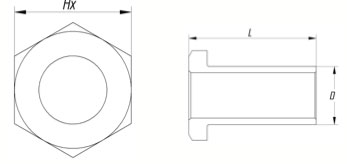

Croquis - RACOR PASAMUROS


referencemidalDmmHxpes
W3A028509 2'' 82 70 76 0.758
W3A028508 1 1/2'' 69 60 62 0.487
W3A028507 1 1/4'' 69 60 55 0.355
W3A028506 1'' 69 60 46 0.291
W3A028505 3/4'' 57 50 37 0.181
W3A028504 1/2'' 57 50 32 0.124
W3A028503 3/8'' 45 40 27 0.076
W3A028502 1/4'' 40 33 22 0.05
