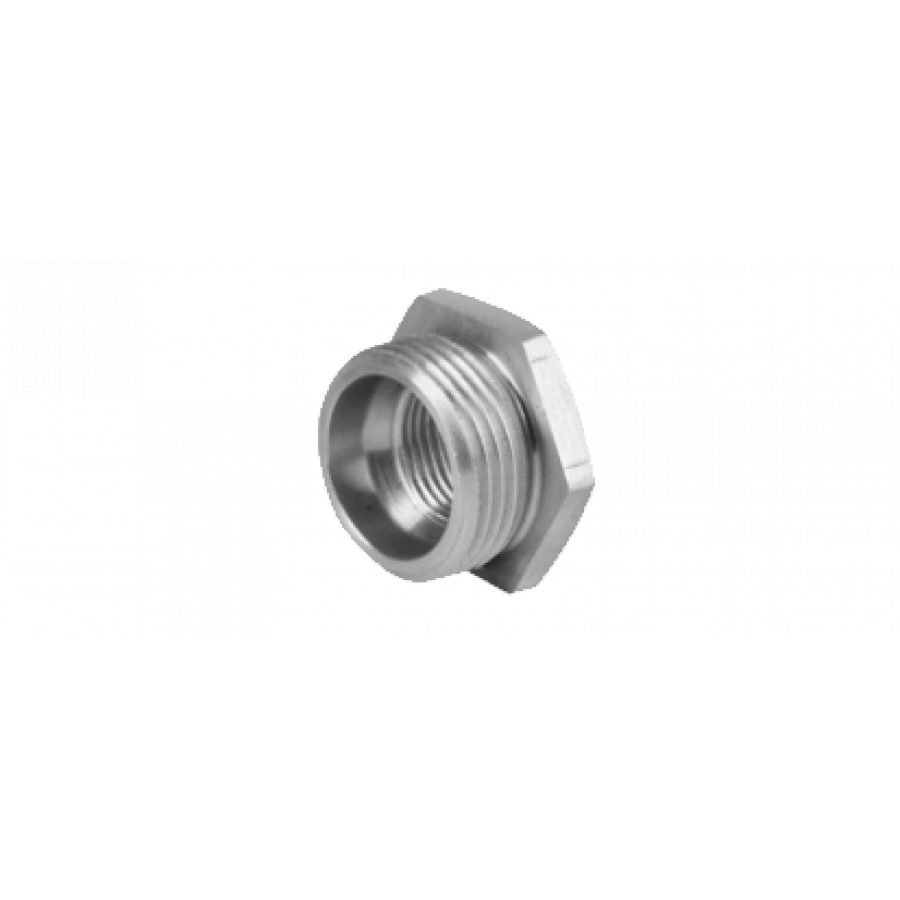

REDUCCIÓN HEXAGONAL M-H

REDUCCIÓN HEXAGONAL M-H

FIG. 241L

Descripción:

Acero Inoxidable EN 1.4408/316L
Rosca BSP conforme EN 10226-1 (ISO 7/1)
150 PSI - PN10



FIG. 241L

Croquis - REDUCCIÓN HEXAGONAL M-H


referencemidalSWpes
W3L02410503 3/4'' x 3/8'' 16.0 30 0.042
W3L02410402 1/2'' x 1/4'' 15.0 22 0.023
W3L02410401 1/2'' x 1/8'' 15.0 22 0.026
W3L02410302 3/8'' x 1/4'' 13.0 18 0.01
W3L02410301 3/8'' x 1/8'' 12.5 18 0.016
W3L02410201 1/4'' x 1/8'' 12.0 14 0.006
