T IGUAL H

T IGUAL H

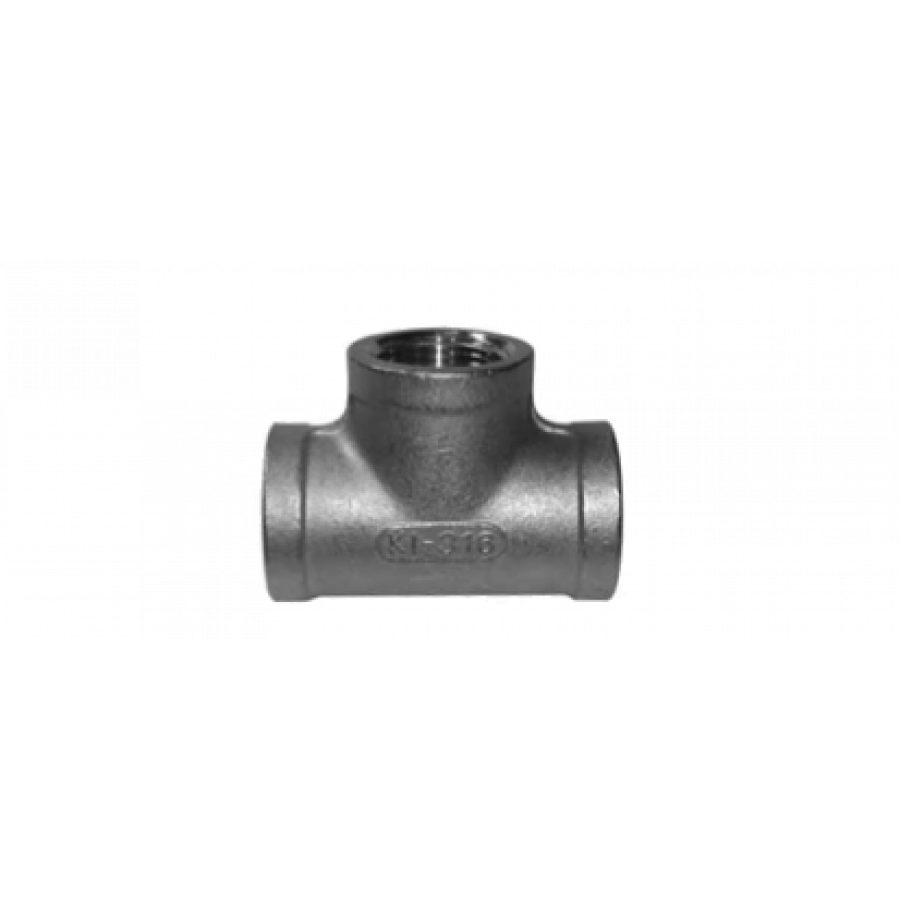

FIG. 130

Descripción:

Acero Inoxidable EN 1.4408/316
Rosca BSP conforme EN 10226-1 (ISO 7/1)
150 PSI - PN10



FIG. 130

Croquis - T IGUAL H


referencemidaL1pes
W3A013012 4'' 96 3.22
W3A013011 3'' 78 1.95
W3A013010 2 1/2'' 69 1.75
W3A013009 2'' 56 1.05
W3A013008 1 1/2'' 48 0.67
W3A013007 1 1/4'' 45 0.57
W3A013006 1'' 38 0.36
W3A013005 3/4'' 33 0.22
W3A013004 1/2'' 28 0.15
W3A013003 3/8'' 25 0.1
W3A013002 1/4'' 19 0.08
