TUERCA REDUCCIÓN

TUERCA REDUCCIÓN

FIG. 241

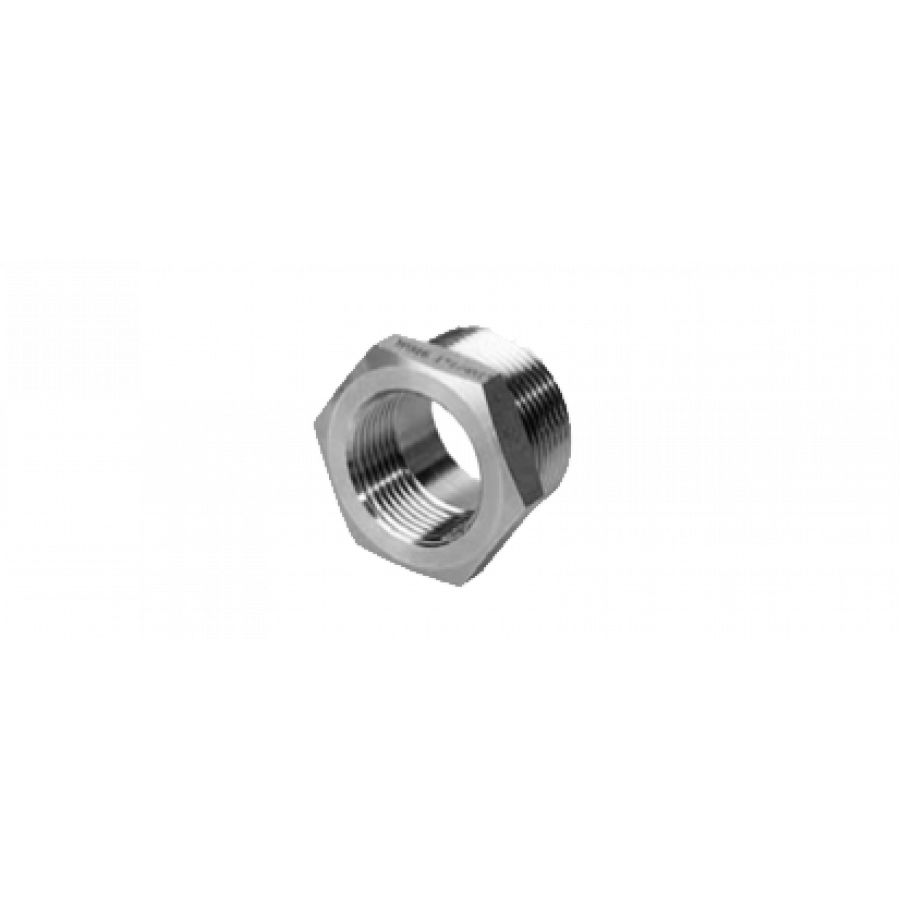

Descripción:

Acero Inoxidable EN 1.4408/316L
Rosca BSP conforme EN 10226-1 (ISO 7/1)
150 PSI - PN10



FIG. 241

Croquis - TUERCA REDUCCIÓN


referencemidalSWpes
W3A02411109 3'' x 2 1/2'' 48 93 0.84
W3A02410908 2 1/2'' x 2'' 46 80 0.55
W3A02411009 2'' x 1 1/2'' 35 65 0.3
W3A02410907 2'' x 1 1/4'' 35 65 0.36
W3A02410906 2'' x 1'' 35 65 0.35
W3A02410807 1 1/2'' x 1 1/4'' 31 50 0.2
W3A02410806 1 1/2'' x 1'' 31 50 0.27
W3A02410805 1 1/2'' x 3/4 31 50 0.31
W3A02410706 1 1/4'' x 1'' 29 46 0.13
W3A02410705 1 1/4'' x 3/4'' 29 46 0.17
W3A02410704 1 1/4'' x 1/2'' 29 46 0.19
W3A02410605 1'' x 3/4'' 26 36 0.08
W3A02410604 1'' x 1/2'' 26 36 0.1
W3A02410603 1'' x 3/8'' 26 36 0.1
W3A02410504 3/4'' x 1/2'' 24 30 0.05
W3A02410503 3/4'' x 3/8'' 24 30 0.06
W3A02410403 1/2'' x 3/8'' 21 22 0.03
W3A02410402 1/2'' x 1/4'' 21 22 0.04
W3A02410302 3/8'' x 1/4'' 18 19 0.01
W3A02410201 1/4'' x 1/8'' 17 14 0.01
